Iscar

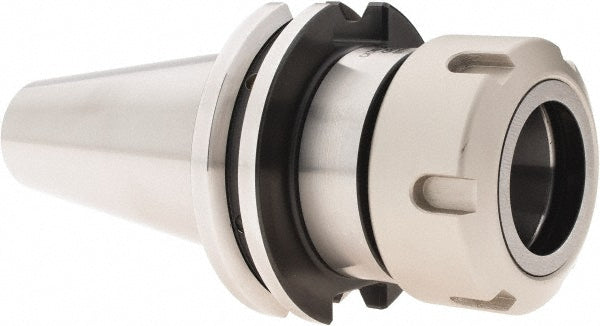

CAT40 Collet Chuck - Iscar 4501444
MFR# 4501444
$241.44List $297.80
Save 18%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 4501444 is a CAT40 Collet Chuck.
Specifications
Balanced to rpm20000
Collet seriesER32
Collet systemER
Coolant typeThrough-Spindle & DIN Flange
Maximum collet capacity0.7890
Minimum collet capacity0.0800
Nose diameter1.9680
Projection2.5620in
Shank typeTaper
Taper sizeCAT40
Through coolantYes
Tir0.0001
