Iscar

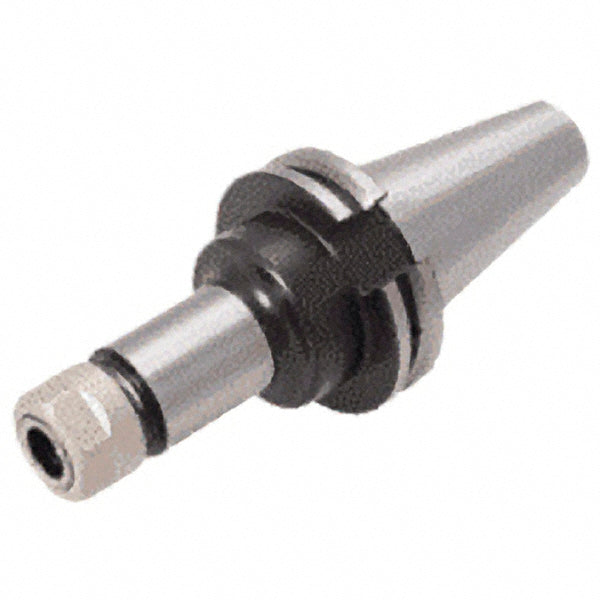

CAT40 Collet Chuck - Iscar 4501451
MFR# 4501451
$250.31List $314.20
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 4501451 is a CAT40 Collet Chuck.
Specifications
Balanced to rpm20000
Collet seriesER32
Collet systemER
Coolant typeThrough-Spindle & DIN Flange
Maximum collet capacity0.7890
Minimum collet capacity0.0800
Nose diameter1.9680
Projection in4
Shank typeTaper
Taper sizeCAT40
Through coolantYes
Tir0.000100
