Iscar

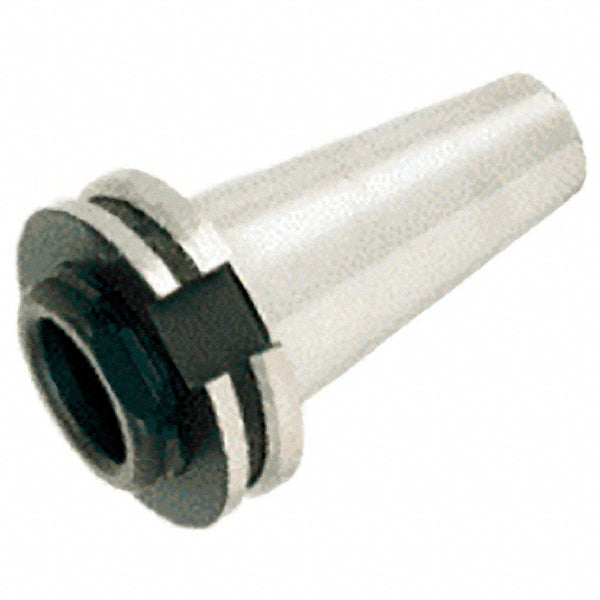

CAT40 Collet Chuck - Iscar 4501600
MFR# 4501600
$232.69List $287.00
Save 18%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 4501600 is a CAT40 Collet Chuck.
Specifications
Balanced to rpm20000
Collet seriesER32
Collet systemER
Coolant typeThrough-Spindle & DIN Flange
Maximum collet capacity0.7890
Minimum collet capacity0.0800
Nose diameter1.5750
Projection1.1240
Shank typeTaper
Taper sizeCAT40
Through coolantYes
Tir0.000100
