Iscar

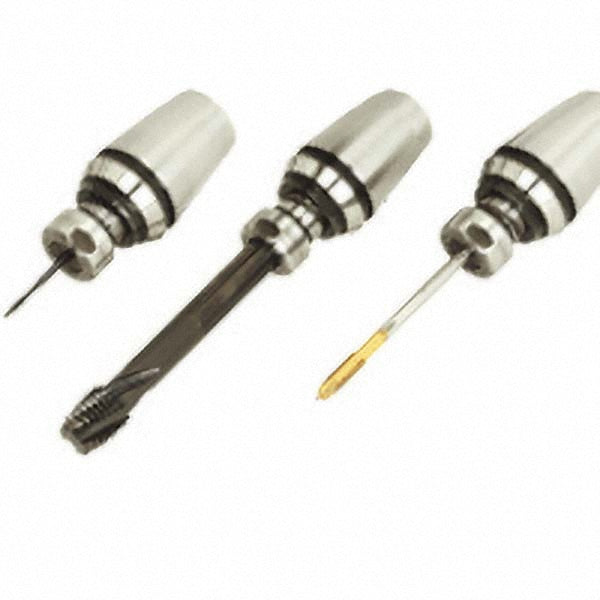

BT30 Collet Chuck - Iscar 4510002
MFR# 4510002
$212.30List $266.50
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 4510002 is a BT30 Collet Chuck.
Specifications
Balanced to rpm12000
Collet seriesER20
Collet systemER
Coolant typeThrough-Spindle & DIN Flange
Maximum collet capacity0.5118
Minimum collet capacity0.0394
Nose diameter1.3386
Projection2.7600
Shank typeTaper
Taper sizeBT30
Through coolantYes
Tir0.000100
