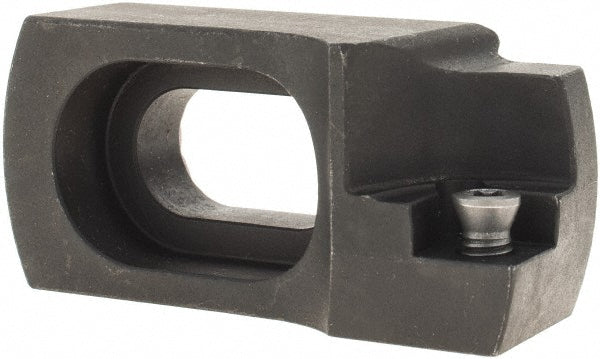

Indexable Boring - Iscar 4550723

Iscar

Indexable Boring - Iscar 4550723

MFR# 4550723Series ItsBore

$166.23List $213.20 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise

Description

The Iscar 4550723 indexable boring. Series ItsBore.

Specifications

Back of bar to cutting edge0.75 in; 2.3813 mm
Boring head compatibilityBBH 30; 40; BBH 63; BBH D16; BHE MB; BHEH; BHF MB16-MB50; BHFH
Compatible insert size code3
Compatible insert styleCCGT
Complete insert compatibilityCCGT 09T301-AS; CCGT 09T302-AS; CCGT 09T303-AS; CCGT 09T304-AS; CCGT 09T308-AS; CCGT 3-.004-AS; CCGT 3-0-AS; CCGT 3-1-AS; CCGT 3-2-AS; CCMT 09T302; CCMT 09T302-SM; CCMT 09T304; CCMT 09T304-14; CCMT 09T304-SM; CCMT 09T304T; CCMT 09T308; CCMT 09T308-14
Minimum bore diameter2.1260
Overall length2.0470
Toolholder applicationBoring
Toolholder styleIHRF
