Iscar

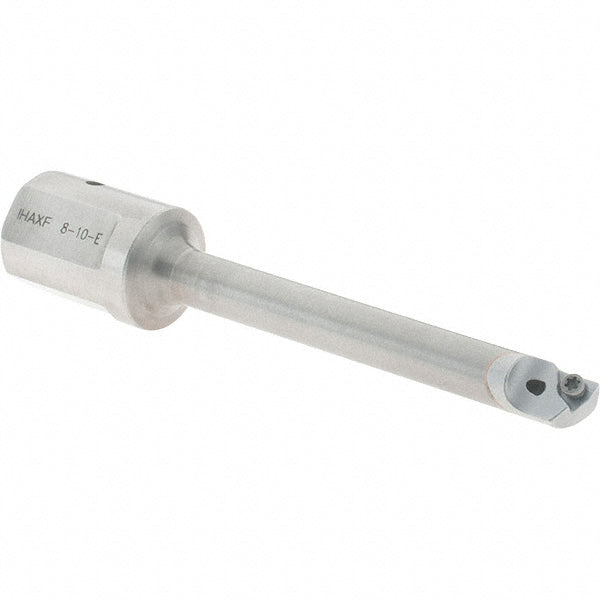

Indexable Boring - Iscar 4550981
MFR# 4550981Series Itsbore
$798.49List $1,024.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 4550981 indexable boring. Series Itsbore.
Specifications
Compatible insert shapeTriangle
Compatible insert size code73
Coolant throughYes
Cutting tool applicationBoring
Insert compatibilityTPGX 73..
Insert holding methodScrew
Lead angle3.00
Maximum bore depth2.3620
Maximum bore diameter0.3940
Minimum bore diameter0.3150
Multi use toolNo
Overall length3.2280
RakePositive
Shank diameter in5/8
StandardsISO 13399
Toolholder styleIHAXF; IHAXF-E
Tool materialSolid Carbide
