Iscar
HSK63A Collet Chuck - Iscar 4561007
MFR# 4561007
$350.32List $432.10
Save 18%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

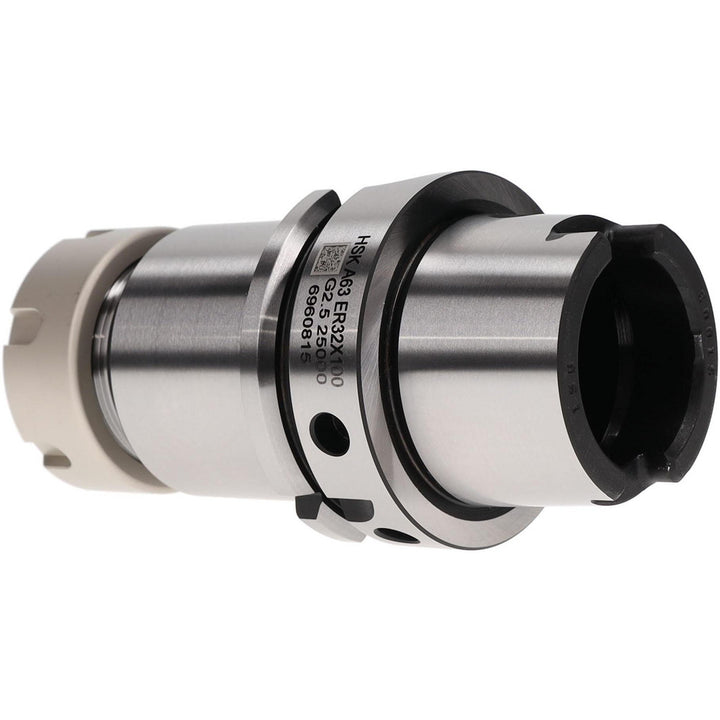

The Iscar 4561007 is a HSK63A Collet Chuck.
Specifications
Balanced to rpm20000
Collet seriesER32
Collet systemER
Coolant typeThrough-Spindle
Maximum collet capacity0.7874
Minimum collet capacity0.0787
Nose diameter1.9685
Projection3.9370
Shank typeHollow Taper
Taper sizeHSK63A
Through coolantYes
