Iscar

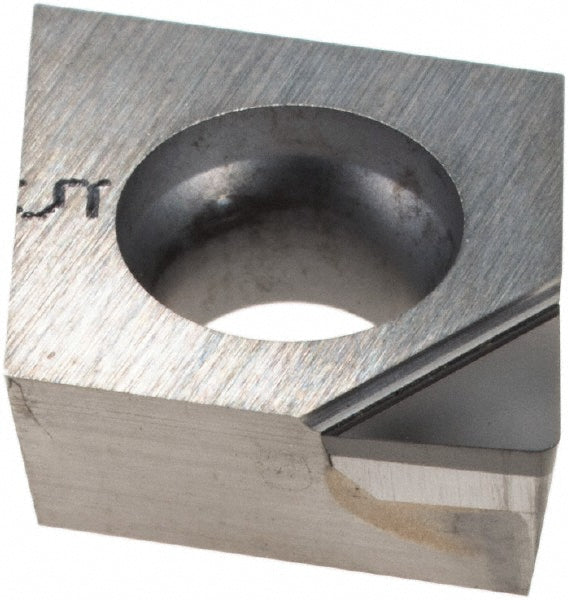

ISO 13399 Polycrystalline Diamond Insert, Grade ID5 - Iscar 5400943
MFR# 5400943ISO/ANSI# ISO 13399Series Isoturn
$141.00List $145.60
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeID5
MaterialPolycrystalline Diamond
Description
The Iscar 5400943 is a ISO 13399 polycrystalline diamond indexable insert, grade ID5. Suited for non-ferrous metal.
Specifications
Chip breakerT
Clearance codeC
Coating processPCD
Corner radius in1/64
Hole diameter0.1732
Included angle80.0
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.3819
Insert materialPolycrystalline Diamond
Insert shapeDiamond
Insert size code3-1
Insert styleCCMT
Insert thickness in5/32
Iso codeISO 13399
Length range0.3000 - 0.4000
Manufacturer gradeID5
Maximum depth of cut0.1181
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle4
Relief angle7
Single or multi tippedSingle Tipped
StandardsISO 13399
Tolerance codeM
