Iscar

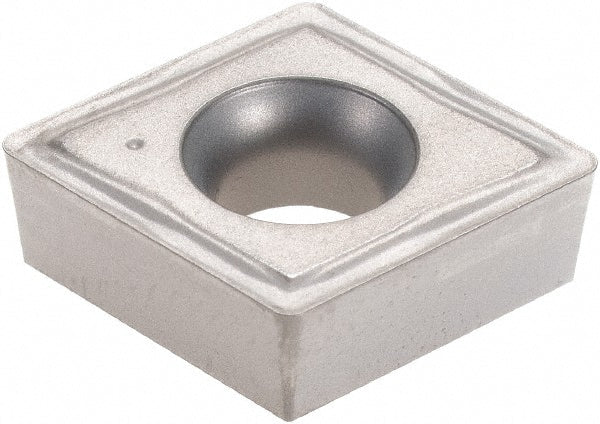

ISO 13399 Solid Carbide Insert, Grade IC20 - Iscar 5500036
MFR# 5500036ISO/ANSI# ISO 13399Series Isoturn
$15.83List $20.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeIC20
MaterialSolid Carbide
Description
The Iscar 5500036 is a ISO 13399 solid carbide indexable insert, grade IC20. Suited for universal.
Specifications
Chip breaker14
Clearance codeC
Coating processUncoated
Corner radius in1/32
Hole diameter0.2165
Included angle80.0
Inscribed circle in1/2
Insert holding methodScrew
Insert length0.5079
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code432
Insert styleCCMT
Insert thickness in3/16
Iso codeISO 13399
Length range0.5000 - 0.6000
Manufacturer gradeIC20
Maximum depth of cut0.1181
Primary workpiece materialUniversal
RakePositive
Relief angle7
StandardsISO 13399
Tolerance codeM
