Iscar

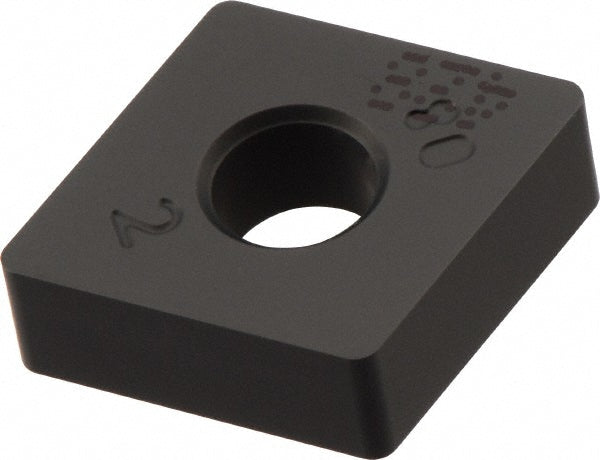

ISO 13399 Solid Carbide Insert, Grade IC428, Al2O3 - Iscar 5500077
MFR# 5500077ISO/ANSI# ISO 13399Series Isoturn
$14.89List $19.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeIC428
MaterialSolid Carbide
CoatingAl2O3
Description
The Iscar 5500077 is a ISO 13399 solid carbide indexable insert, grade IC428, Al2O3 coated. Suited for cast iron, hard material, steel.
Specifications
Chip breakerA
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/32
Included angle80.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.5079
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code432
Insert styleCNMA
Insert thickness in3/16
Iso codeISO 13399
Length range0.5000 - 0.6000
Manufacturer gradeIC428
Material gradeC3; C4
Maximum depth of cut0.1575
Primary workpiece materialCast Iron; Hard Material; Steel
Relief angle0
StandardsISO 13399
Tolerance codeM
