Iscar

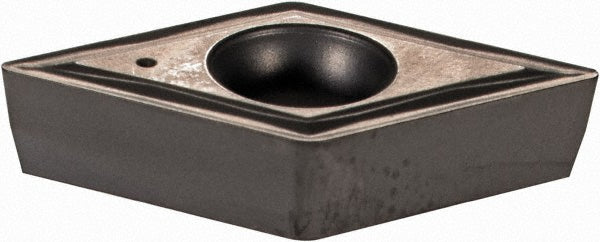

DCMT 3-1-14 Solid Carbide Insert, Grade IC20 - Iscar 5500340
MFR# 5500340ISO/ANSI# DCMT 3-1-14Cat# DCMT 3-1-14Series Isoturn
$13.02List $16.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeIC20
MaterialSolid Carbide
Description
The Iscar 5500340 is a DCMT 3-1-14 solid carbide indexable insert, grade IC20. Suited for universal.
Specifications
Chip breaker14
Clearance codeC
Coating processUncoated
Corner radius in1/64
Hole diameter0.1730
Included angle55.0
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.4570
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code3-1
Insert styleDCMT
Insert thickness in5/32
Iso codeDCMT 3-1-14
Length range0.4000 - 0.5000
Manufacturers catalog numberDCMT 3-1-14
Manufacturer gradeIC20
Maximum depth of cut0.0980
Multi use applicationBoring
Multi use toolYes
Primary workpiece materialUniversal
RakePositive
Relief angle7
StandardsISO 13399
Tolerance codeM
