Iscar

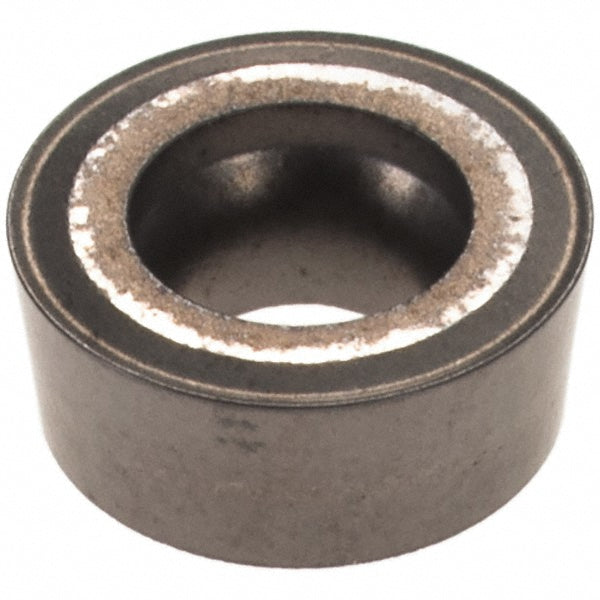

RCMT 0803M0-14 Solid Carbide Insert, Grade IC20 - Iscar 5500606
MFR# 5500606ISO/ANSI# RCMT 0803M0-14Cat# RCMT 0803M0-14Series Isoturn
$11.23List $14.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRound
GradeIC20
MaterialSolid Carbide
Description
The Iscar 5500606 is a RCMT 0803M0-14 solid carbide indexable insert, grade IC20. Suited for universal.
Specifications
Chip breaker14
Clearance codeC
Coating processUncoated
Hole diameter0.1340
Inscribed circle0.3150
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size code0803M0
Insert styleRCMT
Insert thickness in1/8
Iso codeRCMT 0803M0-14
Manufacturers catalog numberRCMT 0803M0-14
Manufacturer gradeIC20
Maximum depth of cut0.1570
Multi use applicationFacing
Multi use toolYes
Primary workpiece materialUniversal
Relief angle7
StandardsISO 13399
Tolerance codeM
