Iscar

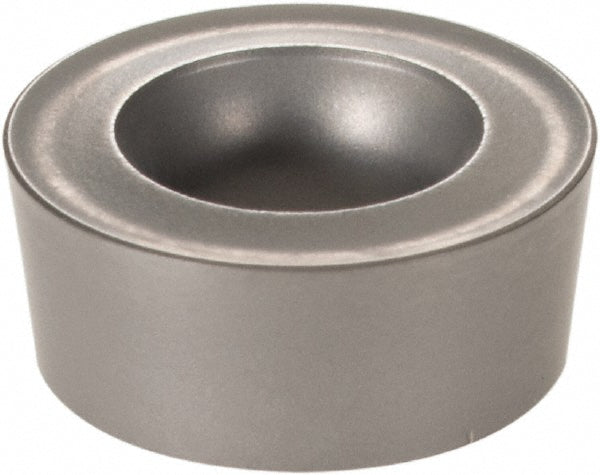

RCMT 1204M0-14 Carbide Insert, Grade IC20 - Iscar 5500620
MFR# 5500620ISO/ANSI# RCMT 1204M0-14Cat# RCMT 1204M0-14Series Isoturn
$14.43List $18.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRound
GradeIC20
MaterialCarbide
Description
The Iscar 5500620 is a RCMT 1204M0-14 carbide indexable insert, grade IC20. Suited for universal.
Specifications
Chip breaker14
Clearance codeC
Coating processUncoated
Hole diameter0.2170
Inscribed circle0.4724
Insert holding methodScrew
Insert materialCarbide
Insert shapeRound
Insert size code1204M0
Insert styleRCMT
Insert thickness in3/16
Iso codeRCMT 1204M0-14
Manufacturers catalog numberRCMT 1204M0-14
Manufacturer gradeIC20
Maximum depth of cut0.2360
Multi use applicationFacing
Multi use toolYes
Primary workpiece materialUniversal
Relief angle7
StandardsISO 13399
Tolerance codeM
