Iscar

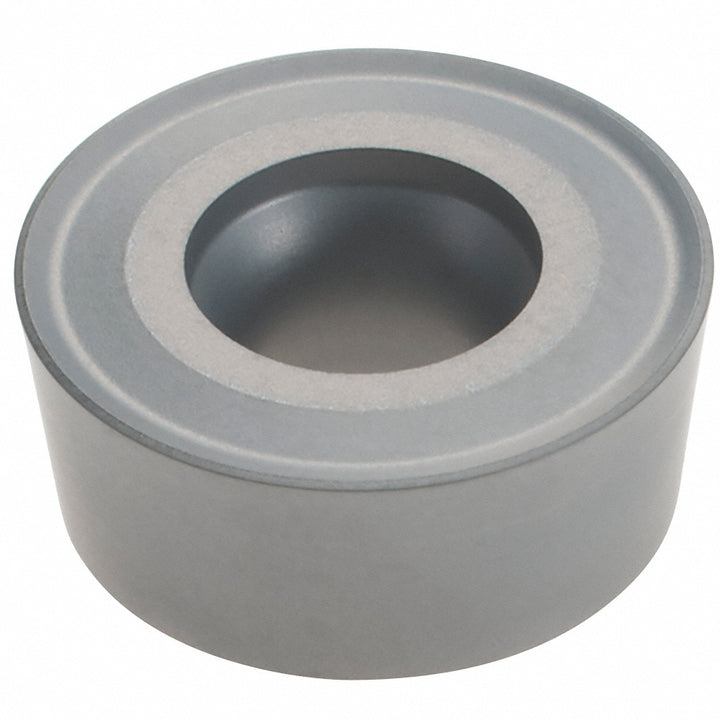

ISO 13399 Solid Carbide Insert, Grade IC20 - Iscar 5500626
MFR# 5500626ISO/ANSI# ISO 13399Series Isoturn
$18.09List $23.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRound
GradeIC20
MaterialSolid Carbide
Description
The Iscar 5500626 is a ISO 13399 solid carbide indexable insert, grade IC20. Suited for universal.
Specifications
Chip breaker14
Clearance codeC
Hole diameter0.2165
Inscribed circle0.6299
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size code1606M0
Insert styleRCMT
Insert thickness in1/4
Iso codeISO 13399
Manufacturer gradeIC20
Maximum depth of cut0.3150
Primary workpiece materialUniversal
Relief angle7
StandardsISO 13399
Tolerance codeM
