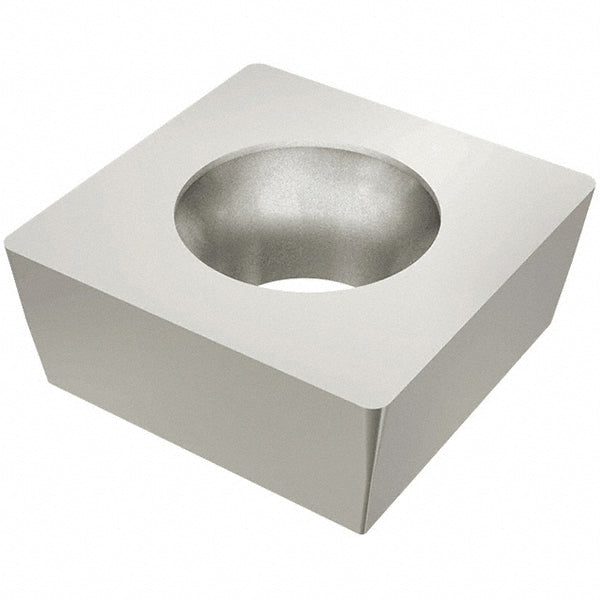

ISO 13399 Solid Carbide Insert, Grade IC20 - Iscar 5500717
MFR# 5500717ISO/ANSI# ISO 13399Series Isoturn
$13.41List $17.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeSquare
GradeIC20
MaterialSolid Carbide
Description
The Iscar 5500717 is a ISO 13399 solid carbide indexable insert, grade IC20. Suited for universal.
Specifications
Chip breakerW
Clearance codeC
Coating processUncoated
Corner radius0.0160
Hole diameter0.1730
Included angle90.0
Inscribed circle in3/8
Insert materialSolid Carbide
Insert shapeSquare
Insert size code3-1
Insert styleSCMW
Insert thickness0.1560
Iso codeISO 13399
Manufacturer gradeIC20
Primary workpiece materialUniversal
RakeNeutral
Relief angle7
StandardsISO 13399
Tolerance codeM
Width in3/8
