Iscar

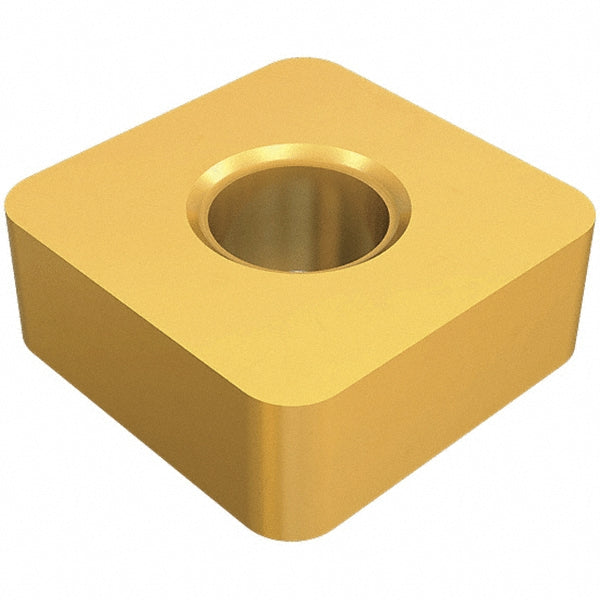

Square 1/2" IC Solid Carbide Insert, Grade IC428, TiC - Iscar 5500797
MFR# 5500797Series Isoturn
$14.19List $18.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeIC428
MaterialSolid Carbide
CoatingTiC
Description
The Iscar 5500797 is a solid carbide indexable insert, grade IC428, TiC coated.
Specifications
Chip breakerA
Clearance codeN
Coating finishTiC
Coating processCVD
Corner radius in3/64
Included angle90.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert materialSolid Carbide
Insert shapeSquare
Insert size code433
Insert styleSNMA
Insert thickness in3/16
Manufacturer gradeIC428
Maximum depth of cut0.1969
Relief angle0
Tolerance codeM
