Iscar

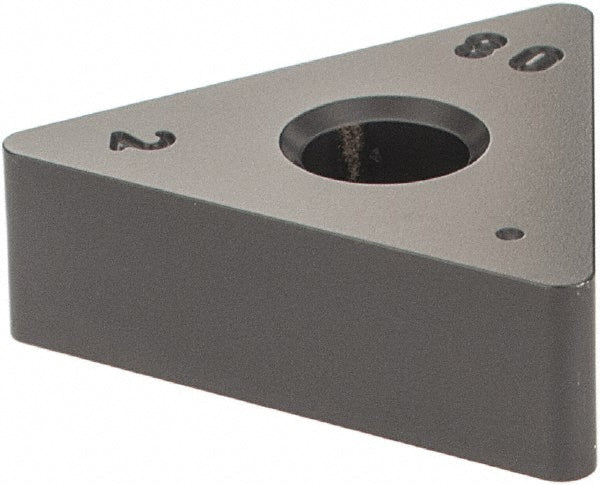

ISO 13399 Carbide Insert, Grade IC428, Al2O3 - Iscar 5501446
MFR# 5501446ISO/ANSI# TNMA160408Series Isoturn
$11.93List $15.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeT - Triangle
GradeIC428
MaterialCarbide
CoatingAl2O3
Description
The Iscar 5501446 is a ISO 13399 carbide indexable insert, grade IC428, Al2O3 coated.
Specifications
Ansi insert codeTNMA332
Ansi size code332
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/32
Grade characteristicsSteel (P) - High Wear-Resistance; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1500
Included angle60
Inscribed circle in3/8
Insert holding methodClamp; Pin
Insert length0.6496
Insert materialCarbide
Insert shapeT - Triangle
Insert size code332
Insert styleTNMA
Insert thickness in3/16
Iso codeISO 13399
Iso insert codeTNMA160408
Iso size code160408
Length range0.6000 - 0.6500
Manufacturer gradeIC428
Material gradeC3; C4
Maximum depth of cut0.1575
Relief angle0
Side clearanceNegative
StandardsISO 13399
Tolerance codeM
