Iscar

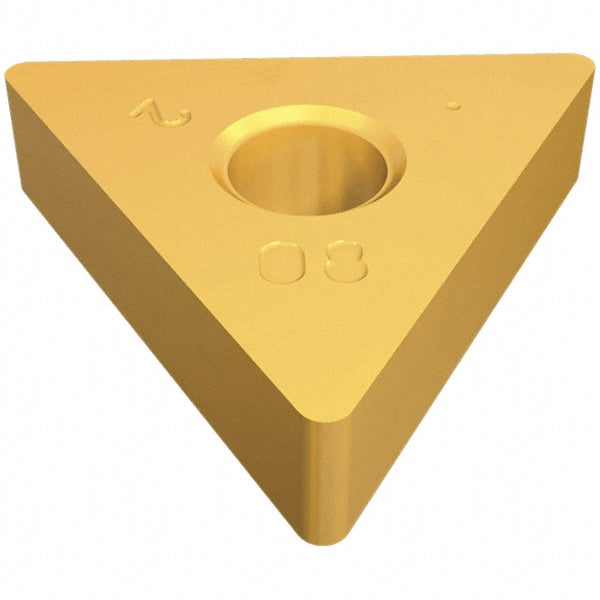

ISO 13399 Carbide Insert, Grade IC20 - Iscar 5501466
MFR# 5501466ISO/ANSI# TNMA220408Series Isoturn
$11.91List $15.00
Save 20%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeT - Triangle
GradeIC20
MaterialCarbide
Description
The Iscar 5501466 is a ISO 13399 carbide indexable insert, grade IC20. Suited for universal.
Specifications
Ansi insert codeTNMA432
Ansi size code432
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeN
Coating processUncoated
Corner radius in1/32
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughne
Included angle60
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.8661
Insert materialCarbide
Insert shapeT - Triangle
Insert size code432
Insert styleTNMA
Insert thickness in3/16
Iso codeISO 13399
Iso insert codeTNMA220408
Iso size code220408
Length range0.7000 - 10.0000
Manufacturer gradeIC20
Maximum depth of cut0.1969
Primary workpiece materialUniversal
Relief angle0
Side clearanceNegative
StandardsISO 13399
Tolerance codeM
