Iscar

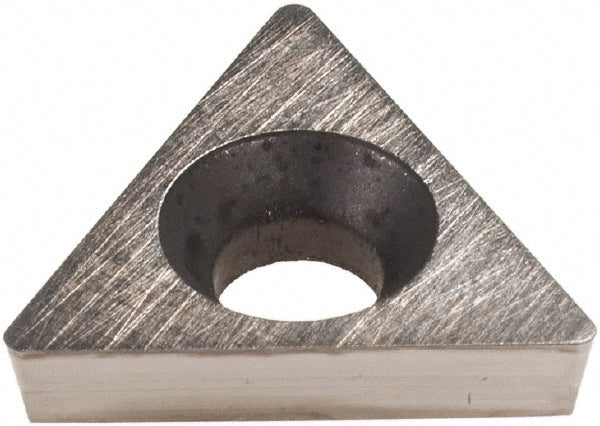

Triangle 1/4" IC Solid Carbide Insert, Grade IC70 - Iscar 5502098
MFR# 5502098Series Isoturn
$13.41List $17.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
GradeIC70
MaterialSolid Carbide
Description
The Iscar 5502098 is a solid carbide indexable insert, grade IC70.
Specifications
Chip breakerB
Clearance codeP
Corner radius in1/64
Hole diameter0.1181
Included angle60.0
Inscribed circle in1/4
Insert holding methodScrew
Insert length0.4331
Insert materialSolid Carbide
Insert shapeTriangle
Insert size code2-1
Insert styleTPGB
Insert thickness in3/32
Length range0.4000 - 0.5000
Manufacturer gradeIC70
Maximum depth of cut0.1181
Relief angle11
Tolerance codeG
