Iscar

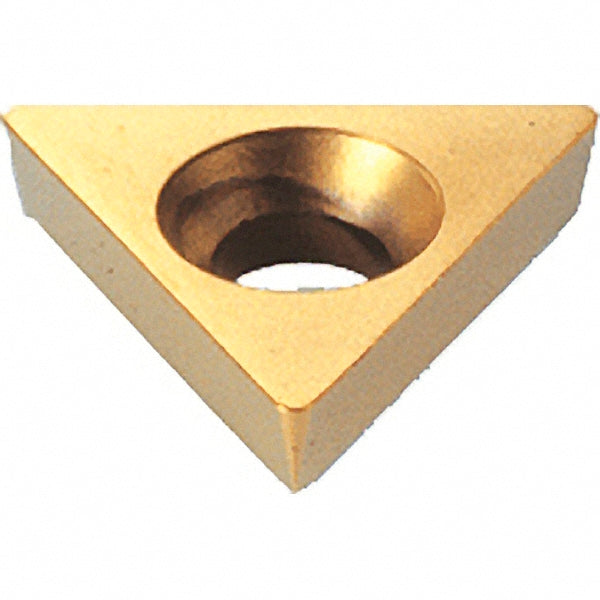

Triangle 3/8" IC Solid Carbide Insert, Grade IC70 - Iscar 5502115
MFR# 5502115Series Isoturn
$16.53List $21.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeIC70
MaterialSolid Carbide
Description
The Iscar 5502115 is a solid carbide indexable insert, grade IC70.
Specifications
Chip breaker60
Clearance codeP
Corner radius in1/64
Hole diameter0.1693
Included angle60.0
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.6496
Insert materialSolid Carbide
Insert shapeTriangle
Insert size code321
Insert styleTPGB
Insert thickness in1/8
Length range0.6000 - 0.6500
Manufacturer gradeIC70
Maximum depth of cut0.1575
Relief angle11
Tolerance codeG
