Iscar

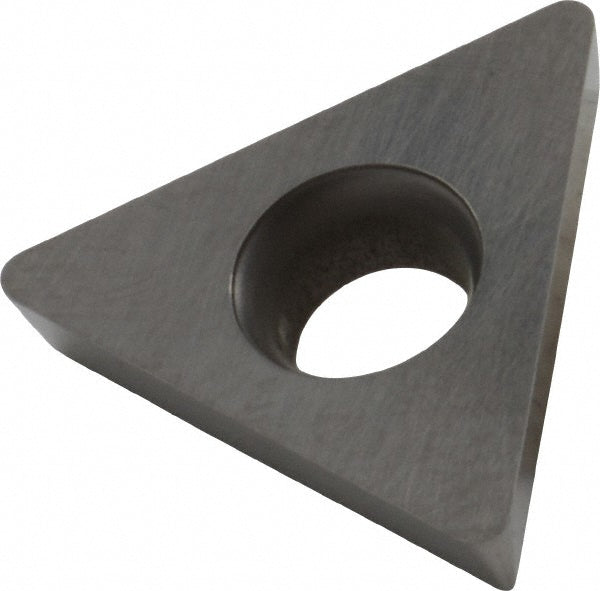

TPGB 322-60 Solid Carbide Insert, Grade IC70 - Iscar 5502128
MFR# 5502128ISO/ANSI# TPGB 322-60Cat# TPGB 322-60Series Isoturn
$14.19List $18.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeIC70
MaterialSolid Carbide
Description
The Iscar 5502128 is a TPGB 322-60 solid carbide indexable insert, grade IC70.
Specifications
Chip breaker60
Clearance codeP
Corner radius in1/32
Hole diameter0.1690
Included angle60.0
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.6500
Insert materialSolid Carbide
Insert shapeTriangle
Insert size code322
Insert styleTPGB
Insert thickness in1/8
Iso codeTPGB 322-60
Length range0.6500 - 0.7000
Manufacturers catalog numberTPGB 322-60
Manufacturer gradeIC70
Maximum depth of cut0.1570
Multi use applicationBoring
Multi use toolYes
Relief angle11
Single or double endSingle
Tolerance codeG
