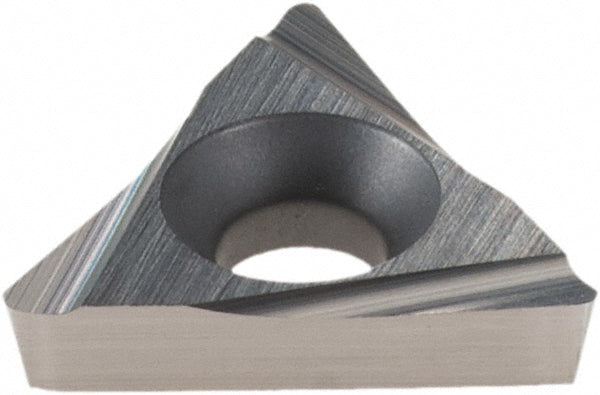

ISO 13399 Carbide Insert, Grade IC20 - Iscar 5502143
MFR# 5502143ISO/ANSI# TPGH110204Series Isoturn
$15.98List $20.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeT - Triangle
GradeIC20
MaterialCarbide
Description
The Iscar 5502143 is a ISO 13399 carbide indexable insert, grade IC20. Suited for universal.
Specifications
Ansi insert codeTPGH2-1
Ansi size code2-1
Chip breakerL
Chip breaker operationFinishing
Clearance codeP
Coating processUncoated
Corner radius in1/64
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughne
Hole diameter0.1181
Included angle60
Inscribed circle in1/4
Insert handLeft Hand
Insert holding methodScrew
Insert length0.4331
Insert materialCarbide
Insert shapeT - Triangle
Insert size code2-1
Insert styleTPGH
Insert thickness in3/32
Iso codeISO 13399
Iso insert codeTPGH110204
Iso size code110204
Length range0.4000 - 0.5000
Manufacturer gradeIC20
Maximum depth of cut0.1181
Primary workpiece materialUniversal
Relief angle11
Side clearancePositive
StandardsISO 13399
Tolerance codeG
