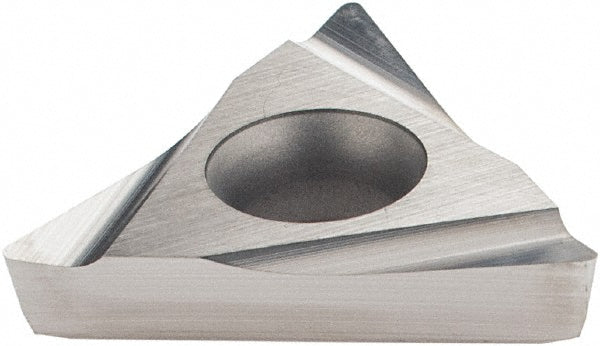

ISO 13399 Solid Carbide Insert, Grade IC20 - Iscar 5502157
MFR# 5502157ISO/ANSI# ISO 13399Series Isoturn
$24.17List $31.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeIC20
MaterialSolid Carbide
Description
The Iscar 5502157 is a ISO 13399 solid carbide indexable insert, grade IC20. Suited for k, m, n.
Specifications
Chip breakerH
Clearance codeP
Coating processUncoated
Corner radius in1/64
Hole diameter0.1693
Included angle60.0
Inscribed circle in3/8
Insert handLeft Hand
Insert holding methodScrew
Insert length0.6496
Insert materialSolid Carbide
Insert shapeTriangle
Insert size code321
Insert styleTPGH
Insert thickness in1/8
Iso codeISO 13399
Length range0.6000 - 0.6500
Manufacturer gradeIC20
Material gradeC2; C3
Maximum depth of cut0.1570
Primary workpiece materialK; M; N
RakePositive
Relief angle11
StandardsISO 13399
Tolerance codeG
