Iscar

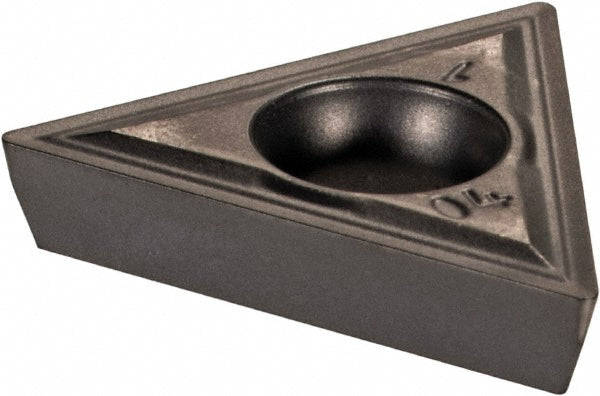

TPMT 321 Solid Carbide Insert, Grade IC20 - Iscar 5502201
MFR# 5502201ISO/ANSI# TPMT 321Cat# TPMT 321Series Isoturn
$15.05List $19.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeIC20
MaterialSolid Carbide
Description
The Iscar 5502201 is a TPMT 321 solid carbide indexable insert, grade IC20. Suited for universal.
Specifications
Chip breakerT
Clearance codeP
Coating processUncoated
Corner radius in1/64
Hole diameter0.1690
Included angle60.0
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.6500
Insert materialSolid Carbide
Insert shapeTriangle
Insert size code321
Insert styleTPMT
Insert thickness in1/8
Iso codeTPMT 321
Length range0.6500 - 0.7000
Manufacturers catalog numberTPMT 321
Manufacturer gradeIC20
Maximum depth of cut0.1570
Multi use toolYes
Primary workpiece materialUniversal
Relief angle11
StandardsISO 13399
Tolerance codeM
