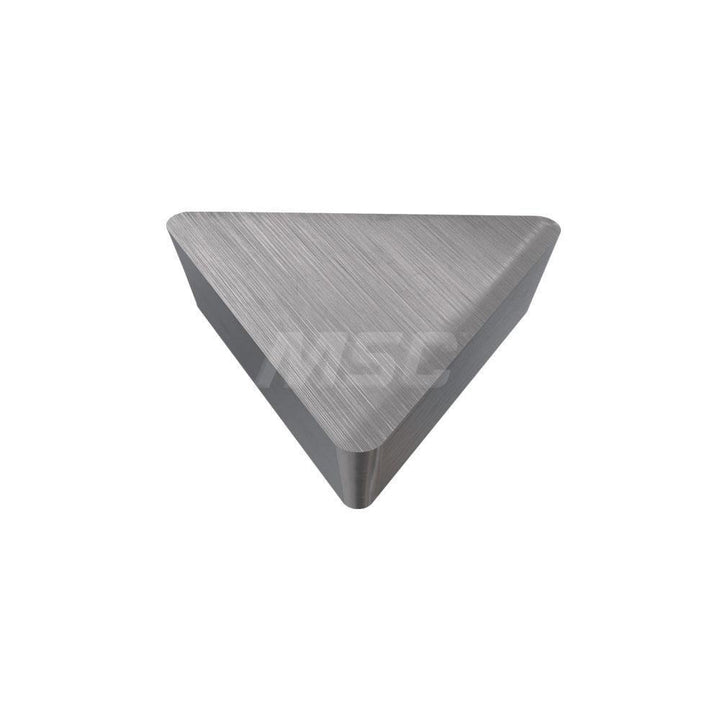

TPUN 110304 Solid Carbide Insert, Grade IC20 - Iscar 5502282

MFR# 5502282ISO/ANSI# TPUN 110304Cat# TPU 221 IC20Series ISCARMILL

$5.92List $7.60 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeTriangle
GradeIC20
MaterialSolid Carbide

Description

The Iscar 5502282 is a TPUN 110304 solid carbide indexable insert, grade IC20. Suited for stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Ansi codeTPU 221 IC20
Chip breakerFlat Top
Coating processUncoated
Corner radius in1/64
Cutting edge effective length0.4174
Cutting edge styleHoned
Included angle degree60
Inscribed circle in1/4
Inscribed circle range0.2500 to 0.3000
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert shapeTriangle
Insert size2
Insert size code221
Insert styleTPU
Iso codeTPUN 110304
Length0.4331
Length range0.4000 to 0.4500
Manufacturers catalog numberTPU 221 IC20
Manufacturer gradeIC20
Material applicationStainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Maximum depth of cut0.4174
Multi use toolYes
Number of cutting edges3
Primary workpiece materialStainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
RakePositive
Rake angle11
Relief angle11
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness in1/8
Thickness range0.1250 to 0.1500
Width0.4331
