Iscar

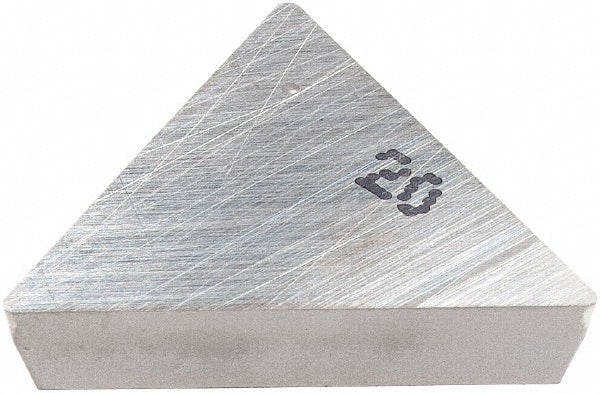

TPUN 160304 Solid Carbide Insert, Grade IC20 - Iscar 5502310
MFR# 5502310ISO/ANSI# TPUN 160304Cat# TPU 321 IC20Series ISCARMILL
$10.15List $12.80
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeIC20
MaterialSolid Carbide
Description
The Iscar 5502310 is a TPUN 160304 solid carbide indexable insert, grade IC20. Suited for stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.
Specifications
Ansi codeTPU 321 IC20
Chip breakerFlat Top
Coating processUncoated
Corner radius in1/64
Cutting edge effective length0.6142
Cutting edge styleHoned
Included angle degree60
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert shapeTriangle
Insert size3
Insert size code321
Insert styleTPU
Iso codeTPUN 160304
Length0.6299
Length range0.6000 to 0.6500
Manufacturers catalog numberTPU 321 IC20
Manufacturer gradeIC20
Material applicationStainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Maximum depth of cut0.6142
Multi use toolYes
Number of cutting edges3
Primary workpiece materialStainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
RakePositive
Rake angle11
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness in1/8
Thickness range0.1250 to 0.1500
Width0.6299
