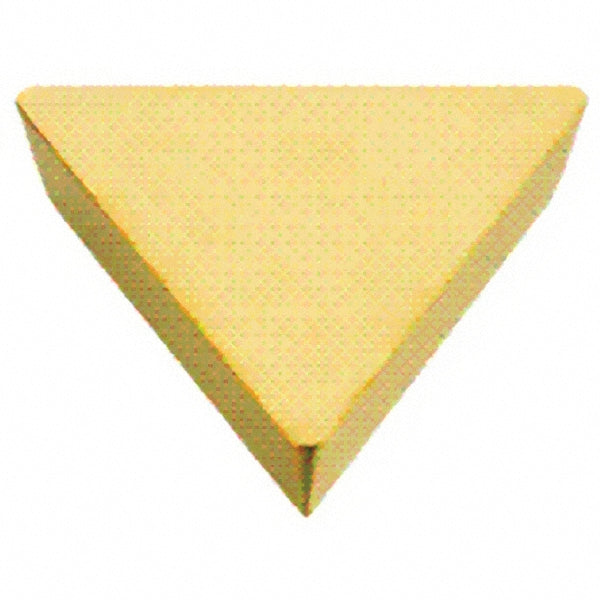

TPUN 160308 Solid Carbide Insert, Grade IC54 - Iscar 5502330

Iscar

TPUN 160308 Solid Carbide Insert, Grade IC54 - Iscar 5502330

MFR# 5502330ISO/ANSI# TPUN 160308Cat# TPU 322 IC54Series ISCARMILL

$9.98List $12.80 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeTriangle
GradeIC54
MaterialSolid Carbide

Description

The Iscar 5502330 is a TPUN 160308 solid carbide indexable insert, grade IC54. Suited for steel, stainless steel.

Specifications

Ansi codeTPU 322 IC54
Chip breakerFlat Top
Coating processUncoated
Corner radius in1/32
Cutting edge effective length0.5984
Cutting edge styleHoned
Included angle degree60
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert shapeTriangle
Insert size3
Insert size code322
Insert styleTPU
Iso codeTPUN 160308
Length0.6299
Length range0.6000 to 0.6500
Manufacturers catalog numberTPU 322 IC54
Manufacturer gradeIC54
Material applicationSteel; Stainless Steel
Maximum depth of cut0.5984
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel
RakePositive
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness in1/8
Thickness range0.1250 to 0.1500
Width0.6299
