Iscar

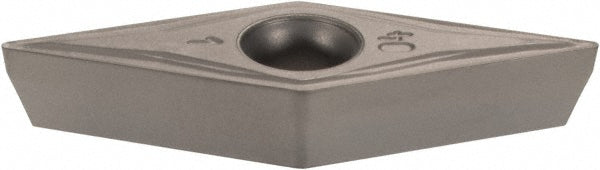

VCMT 331-14 Solid Carbide Insert, Grade IC20 - Iscar 5502397
MFR# 5502397ISO/ANSI# VCMT 331-14Cat# VCMT 331-14Series Isoturn
$19.73List $25.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeIC20
MaterialSolid Carbide
Description
The Iscar 5502397 is a VCMT 331-14 solid carbide indexable insert, grade IC20. Suited for universal.
Specifications
Chip breaker14
Clearance codeC
Coating processUncoated
Corner radius in1/64
Hole diameter0.1730
Included angle35.0
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.6540
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code331
Insert styleVCMT
Insert thickness in3/16
Iso codeVCMT 331-14
Length range0.6500 - 0.7000
Manufacturers catalog numberVCMT 331-14
Manufacturer gradeIC20
Maximum depth of cut0.1970
Multi use applicationBoring
Multi use toolYes
Primary workpiece materialUniversal
RakePositive
Relief angle7
StandardsISO 13399
Tolerance codeM
