Iscar

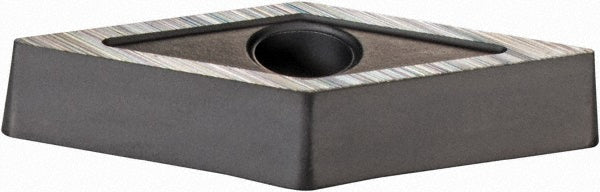

VCMT 332-14 Solid Carbide Insert, Grade IC20 - Iscar 5502403
MFR# 5502403ISO/ANSI# VCMT 332-14Cat# VCMT 332-14Series Isoturn
$19.73List $25.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeIC20
MaterialSolid Carbide
Description
The Iscar 5502403 is a VCMT 332-14 solid carbide indexable insert, grade IC20. Suited for universal.
Specifications
Chip breaker14
Clearance codeC
Coating processUncoated
Corner radius in1/32
Hole diameter0.1730
Included angle35.0
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.6540
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code332
Insert styleVCMT
Insert thickness in3/16
Iso codeVCMT 332-14
Length range0.6500 - 0.7000
Manufacturers catalog numberVCMT 332-14
Manufacturer gradeIC20
Maximum depth of cut0.1970
Multi use applicationBoring
Multi use toolYes
Primary workpiece materialUniversal
RakePositive
Relief angle7
StandardsISO 13399
Tolerance codeM
