Iscar

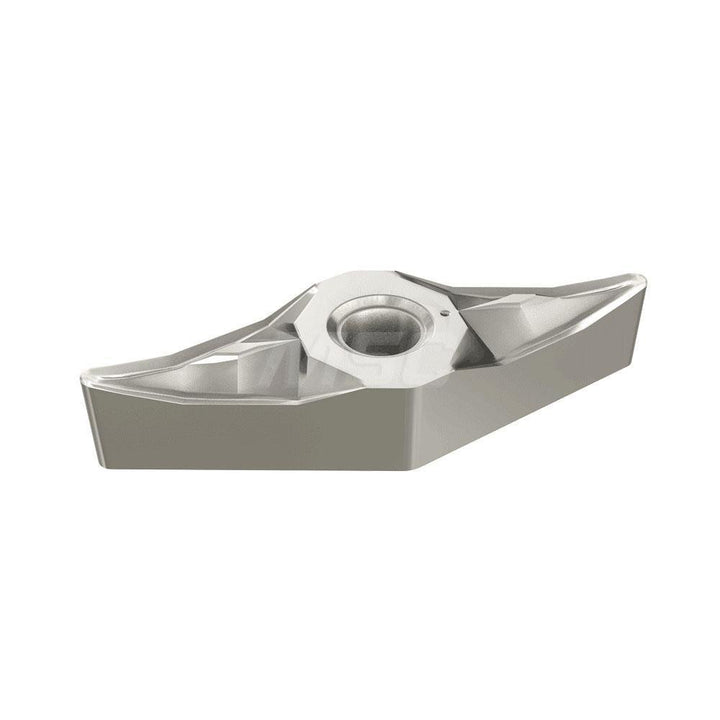

VNMS 332-12 Solid Carbide Insert, Grade IC20 - Iscar 5502467
MFR# 5502467ISO/ANSI# VNMS 332-12Cat# VNMS 332-12Series Isoturn
$19.96List $25.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeIC20
MaterialSolid Carbide
Description
The Iscar 5502467 is a VNMS 332-12 solid carbide indexable insert, grade IC20. Suited for universal.
Specifications
Chip breaker12
Clearance codeN
Coating processUncoated
Corner radius in1/32
Included angle35.0
Inscribed circle in3/8
Insert holding methodClamp; Pin
Insert length0.6540
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code332
Insert styleVNMS
Insert thickness in3/16
Iso codeVNMS 332-12
Length range0.6500 - 0.7000
Manufacturers catalog numberVNMS 332-12
Manufacturer gradeIC20
Maximum depth of cut0.1380
Multi use applicationBoring
Multi use toolYes
Primary workpiece materialUniversal
RakePositive
Relief angle0
Single or double endSingle
StandardsISO 13399
Tolerance codeM
