Iscar

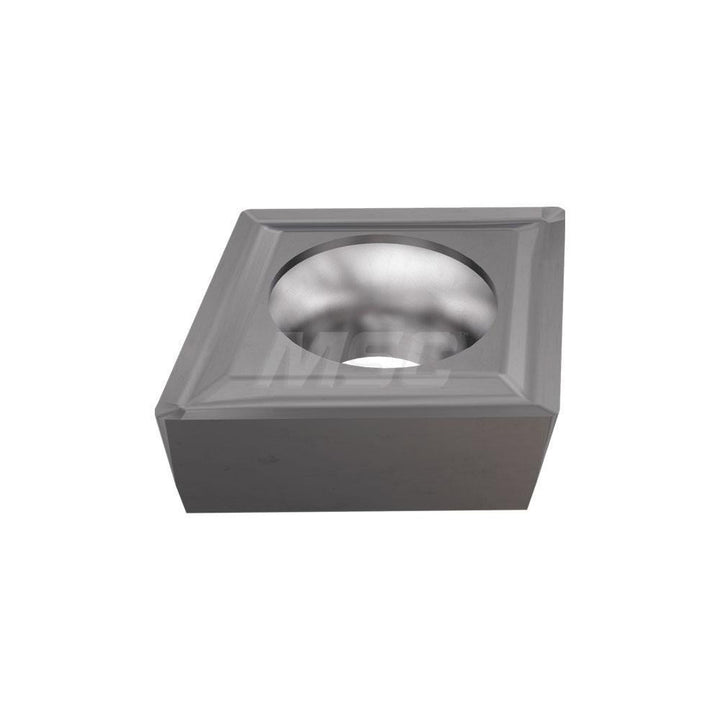

ISO 13399 Solid Carbide Insert, Grade IC20N - Iscar 5502769
MFR# 5502769ISO/ANSI# ISO 13399Series Isoturn
$10.45List $13.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeIC20N
MaterialSolid Carbide
Description
The Iscar 5502769 is a ISO 13399 solid carbide indexable insert, grade IC20N. Suited for stainless steel, steel.
Specifications
Chip breakerT
Clearance codeC
Corner radius0.0079
Hole diameter0.1102
Included angle80.0
Inscribed circle in1/4
Insert holding methodScrew
Insert length0.2480
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code2-0
Insert styleCCMT
Insert thickness in3/32
Iso codeISO 13399
Length range0.0000 - 0.3000
Manufacturer gradeIC20N
Maximum depth of cut0.0787
Primary workpiece materialStainless Steel; Steel
RakePositive
Relief angle7
StandardsISO 13399
Tolerance codeM
