Iscar

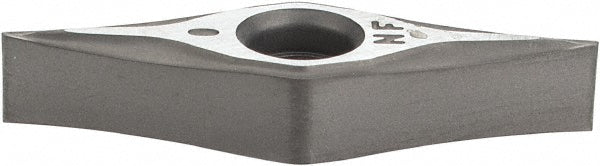

ISO 13399 Solid Carbide Insert, Grade IC10 - Iscar 5502783
MFR# 5502783ISO/ANSI# ISO 13399Series Isoturn
$14.43List $18.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC9/32
ShapeDiamond
GradeIC10
MaterialSolid Carbide
Description
The Iscar 5502783 is a ISO 13399 solid carbide indexable insert, grade IC10. Suited for n, s.
Specifications
Chip breakerNF
Clearance codeN
Coating processUncoated
Corner radius0.0079
Hole diameter0.1100
Included angle35.0
Inscribed circle in9/32
Insert holding methodClamp; Pin
Insert length0.4882
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code2.5
Insert styleVNMG
Insert thickness in5/32
Iso codeISO 13399
Length range0.4000 - 0.5000
Manufacturer gradeIC10
Material gradeC1
Maximum depth of cut0.0980
Primary workpiece materialN; S
RakePositive
Relief angle0
Secondary workpiece materialK
StandardsISO 13399
Tolerance codeM
