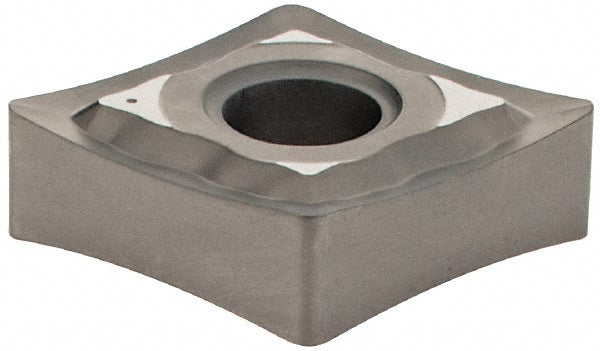

ISO 13399 Solid Carbide Insert, Grade IC28 - Iscar 5502807
MFR# 5502807ISO/ANSI# ISO 13399Series Isoturn
$12.94List $16.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeIC28
MaterialSolid Carbide
Description
The Iscar 5502807 is a ISO 13399 solid carbide indexable insert, grade IC28. Suited for n.
Specifications
Chip breakerPP
Clearance codeN
Coating processUncoated
Corner radius in1/32
Hole diameter0.2030
Included angle80.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.5079
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeISO 13399
Length range0.5000 - 0.6000
Manufacturer gradeIC28
Material gradeC5; C6
Maximum depth of cut0.1575
Primary workpiece materialN
RakePositive
Relief angle0
Secondary workpiece materialM; P; S
StandardsISO 13399
Tolerance codeM
