Iscar

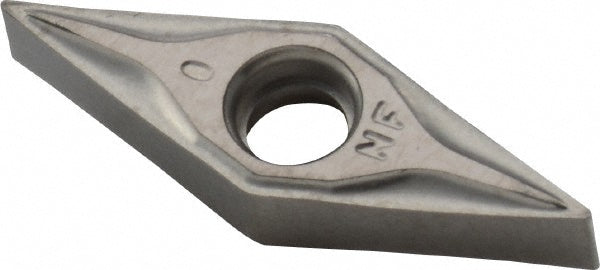

VNMG 2.5-0-NF Cermet Insert, Grade IC20N - Iscar 5502809
MFR# 5502809ISO/ANSI# VNMG 2.5-0-NFCat# VNMG 2.5-0-NFSeries Isoturn
$15.44List $19.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC9/32
ShapeDiamond
GradeIC20N
MaterialCermet
Description
The Iscar 5502809 is a VNMG 2.5-0-NF cermet indexable insert, grade IC20N. Suited for stainless steel, steel.
Specifications
Chip breakerNF
Clearance codeN
Coating processUncoated
Corner radius0.0080
Included angle35
Inscribed circle in9/32
Insert holding methodClamp; Pin
Insert length0.4880
Insert materialCermet
Insert shapeDiamond
Insert size code2.5-0
Insert styleVNMG
Insert thickness in5/32
Iso codeVNMG 2.5-0-NF
Length range0.4000 - 0.5000
Manufacturers catalog numberVNMG 2.5-0-NF
Manufacturer gradeIC20N
Maximum depth of cut0.0980
Multi use applicationBoring
Multi use toolYes
Primary workpiece materialStainless Steel; Steel
RakePositive
Relief angle0
StandardsISO 13399
Tolerance codeM
