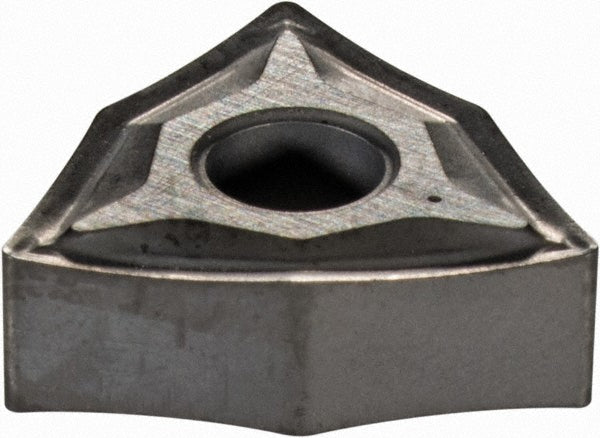

ISO 13399 Carbide Insert, Grade IC20 - Iscar 5503008

Iscar

ISO 13399 Carbide Insert, Grade IC20 - Iscar 5503008

MFR# 5503008ISO/ANSI# WNMG06T304Series Isoturn

$9.20List $11.80 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeW - Trigon 80-Deg
GradeIC20
MaterialCarbide

Description

The Iscar 5503008 is a ISO 13399 carbide indexable insert, grade IC20. Suited for universal.

Specifications

Ansi insert codeWNMG3-1
Ansi size code3-1
Chip breakerNF
Chip breaker operationFinishing
Clearance codeN
Coating processUncoated
Corner radius in1/64
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughne
Included angle80
Inscribed circle in3/8
Insert holding methodClamp; Pin
Insert length0.2567
Insert materialCarbide
Insert shapeW - Trigon 80-Deg
Insert size code3-1
Insert styleWNMG
Insert thickness in5/32
Iso codeISO 13399
Iso insert codeWNMG06T304
Iso size code06T304
Length range0.0000 - 0.3000
Manufacturer gradeIC20
Maximum depth of cut0.0984
Primary workpiece materialUniversal
RakePositive
Relief angle0
Side clearanceNegative
StandardsISO 13399
Tolerance codeM
