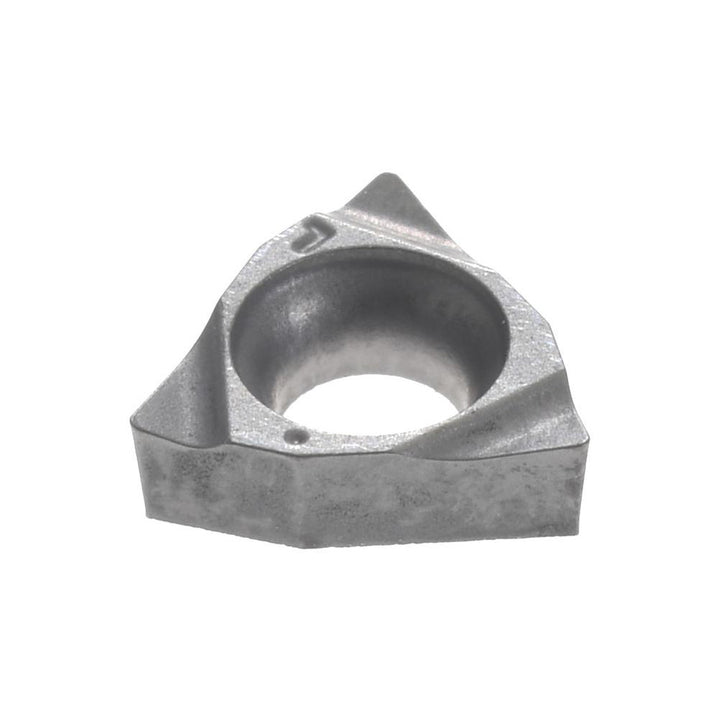

ISO 13399 Cermet Insert, Grade IC30N - Iscar 5503015
MFR# 5503015ISO/ANSI# ISO 13399Series Isoturn
$16.22List $20.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/32
ShapeTrigon
GradeIC30N
MaterialCermet
Description
The Iscar 5503015 is a ISO 13399 cermet indexable insert, grade IC30N. Suited for hard material, stainless steel, steel.
Specifications
ChipbreakerT
Coating processUncoated
Corner radius0.0080
Hole diameter0.0890
Included angle80
Inscribed circle in5/32
Insert handLeft Hand
Insert holding methodScrew
Insert materialCermet
Insert shapeTrigon
Insert size code520
Insert styleWBMT
Iso codeISO 13399
Length0.0858
Manufacturer gradeIC30N
Material gradeC6; C7
Maximum depth of cut0.0790
Primary workpiece materialHard Material; Stainless Steel; Steel
RakePositive
Relief angle5
StandardsISO 13399
