Iscar

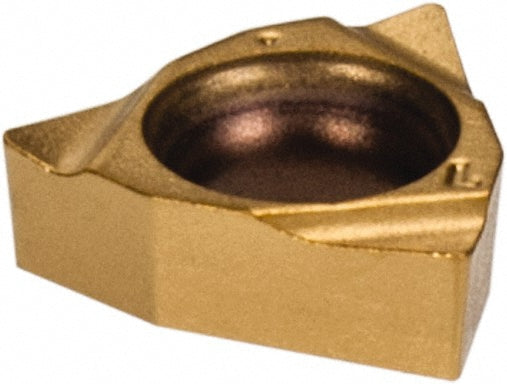

ISO 13399 Cermet Insert, Grade IC530N, TiCN - Iscar 5503223
MFR# 5503223ISO/ANSI# ISO 13399Series Isoturn
$16.84List $21.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/32
ShapeTrigon
GradeIC530N
MaterialCermet
CoatingTiCN
Description
The Iscar 5503223 is a ISO 13399 cermet indexable insert, grade IC530N, TiCN coated. Suited for stainless steel, steel.
Specifications
ChipbreakerT
Coating finishTiCN
Coating processPVD
Corner radius0.0079
Included angle80
Inscribed circle in5/32
Insert handLeft Hand
Insert holding methodScrew
Insert materialCermet
Insert shapeTrigon
Insert size code520
Insert styleWBMT
Iso codeISO 13399
Length0.0858
Manufacturer gradeIC530N
Maximum depth of cut0.0787
Primary workpiece materialStainless Steel; Steel
Relief angle5
StandardsISO 13399
