Iscar

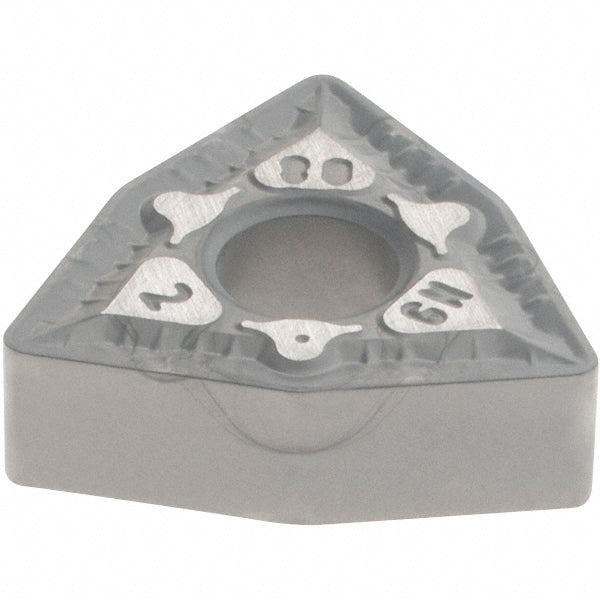

ISO 13399 Carbide Insert, Grade IC20 - Iscar 5503262
MFR# 5503262ISO/ANSI# ISO 13399Series Isoturn
$13.02List $16.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
GradeIC20
MaterialCarbide
Description
The Iscar 5503262 is a ISO 13399 carbide indexable insert, grade IC20. Suited for universal.
Specifications
Chip breakerGN
Clearance codeN
Coating processUncoated
Corner radius in1/32
Included angle80
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.3425
Insert materialCarbide
Insert shapeTrigon
Insert size code432
Insert styleWNMG
Insert thickness in3/16
Iso codeISO 13399
Length range0.3000 - 0.4000
Manufacturer gradeIC20
Maximum depth of cut0.1772
Primary workpiece materialUniversal
Relief angle0
StandardsISO 13399
Tolerance codeM
