Iscar

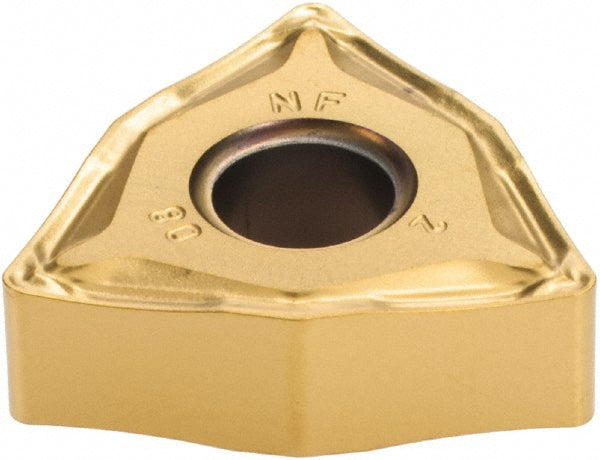

WNMG 432-NF Cermet Insert, Grade IC530N, TiCN - Iscar 5503666
MFR# 5503666ISO/ANSI# WNMG 432-NFCat# WNMG 432-NFSeries Isoturn
$16.84List $21.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
GradeIC530N
MaterialCermet
CoatingTiCN
Description
The Iscar 5503666 is a WNMG 432-NF cermet indexable insert, grade IC530N, TiCN coated. Suited for stainless steel, steel.
Specifications
Chip breakerNF
Clearance codeN
Coating finishTiCN
Coating processPVD
Corner radius in1/32
Included angle80.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.3430
Insert materialCermet
Insert shapeTrigon
Insert size code432
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG 432-NF
Length range0.3000 - 0.4000
Manufacturers catalog numberWNMG 432-NF
Manufacturer gradeIC530N
Maximum depth of cut0.1380
Multi use applicationBoring
Multi use toolYes
Primary workpiece materialStainless Steel; Steel
RakePositive
Relief angle0
StandardsISO 13399
Tolerance codeM
