Iscar

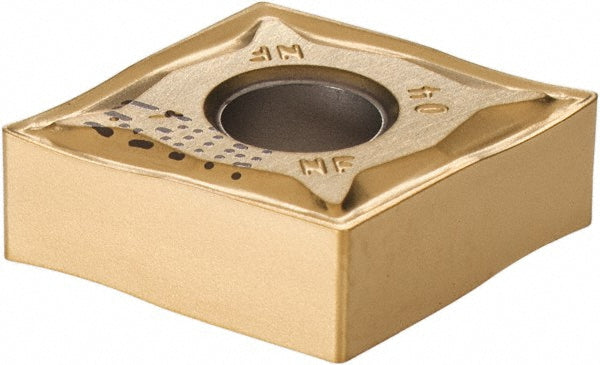

CNMG 431-NF Cermet Insert, Grade IC530N, TiCN - Iscar 5503676
MFR# 5503676ISO/ANSI# CNMG 431-NFCat# CNMG 431-NFSeries Isoturn
$15.44List $19.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeIC530N
MaterialCermet
CoatingTiCN
Description
The Iscar 5503676 is a CNMG 431-NF cermet indexable insert, grade IC530N, TiCN coated. Suited for stainless steel, steel.
Specifications
Chip breakerNF
Clearance codeN
Coating finishTiCN
Coating processPVD
Corner radius in1/64
Included angle80.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialCermet
Insert shapeDiamond
Insert size code431
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG 431-NF
Length range0.5000 - 0.6000
Manufacturers catalog numberCNMG 431-NF
Manufacturer gradeIC530N
Maximum depth of cut0.1380
Multi use applicationBoring
Multi use toolYes
Primary workpiece materialStainless Steel; Steel
RakePositive
Relief angle0
StandardsISO 13399
Tolerance codeM
