Iscar

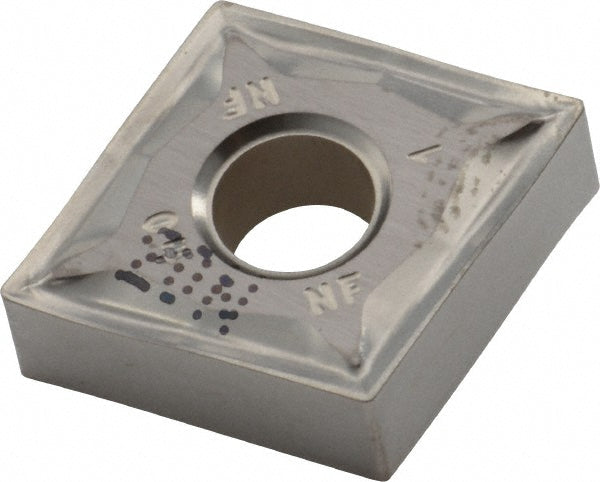

CNMG 431-NF Cermet Insert, Grade IC20N - Iscar 5503729
MFR# 5503729ISO/ANSI# CNMG120404Cat# CNMG 431-NFSeries Isoturn
$13.72List $17.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeIC20N
MaterialCermet
Description
The Iscar 5503729 is a CNMG 431-NF cermet indexable insert, grade IC20N. Suited for stainless steel, steel.
Specifications
Ansi insert codeCNMG431
Ansi size code431
Chip breakerNF
Chip breaker operationFinishing
Clearance codeN
Corner radius in1/64
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance
Included angle80
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialCermet
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code431
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG 431-NF
Iso insert codeCNMG120404
Iso size code120404
Length range0.5000 - 0.6000
Manufacturers catalog numberCNMG 431-NF
Manufacturer gradeIC20N
Maximum depth of cut0.1380
Multi use applicationBoring
Multi use toolYes
Primary workpiece materialStainless Steel; Steel
RakePositive
Relief angle0
Side clearanceNegative
StandardsISO 13399
Tolerance codeM
