Iscar

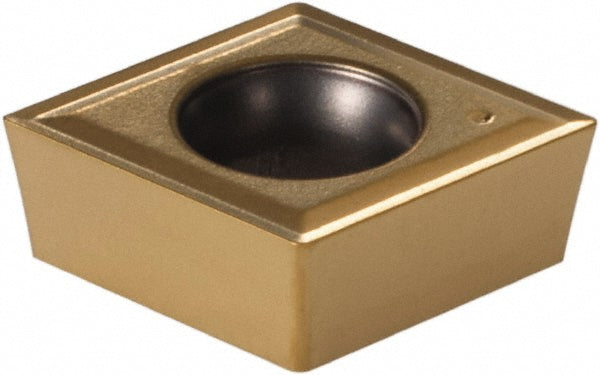

ISO 13399 Cermet Insert, Grade IC520N, TiCN - Iscar 5503773
MFR# 5503773ISO/ANSI# ISO 13399Series Isoturn
$14.74List $18.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeIC520N
MaterialCermet
CoatingTiCN
Description
The Iscar 5503773 is a ISO 13399 cermet indexable insert, grade IC520N, TiCN coated. Suited for stainless steel, steel.
Specifications
Chip breakerT
Clearance codeC
Coating finishTiCN
Coating processPVD
Corner radius0.0079
Hole diameter0.1732
Included angle80.0
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.3819
Insert materialCermet
Insert shapeDiamond
Insert size code3-0
Insert styleCCMT
Insert thickness in5/32
Iso codeISO 13399
Length range0.3000 - 0.4000
Manufacturer gradeIC520N
Material gradeC6; C7
Maximum depth of cut0.0984
Primary workpiece materialStainless Steel; Steel
RakePositive
Relief angle7
StandardsISO 13399
Tolerance codeM
