Iscar

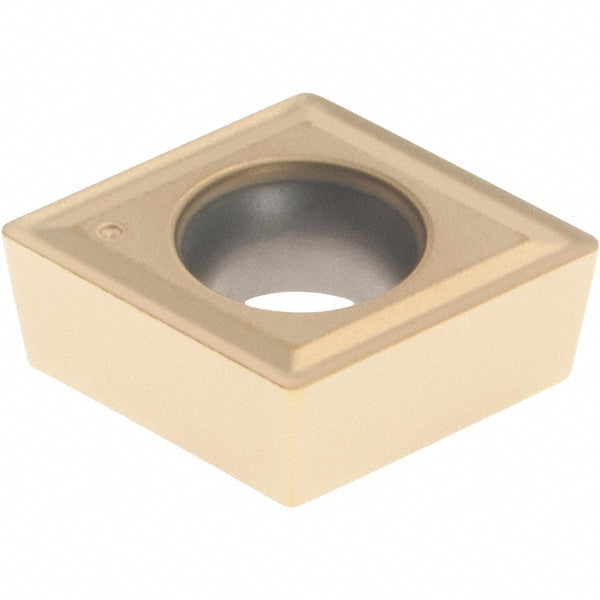

ISO 13399 Cermet Insert, Grade IC520N, TiCN - Iscar 5503774
MFR# 5503774ISO/ANSI# CCMT09T304Series Isoturn
$14.74List $18.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeIC520N
MaterialCermet
CoatingTiCN
Description
The Iscar 5503774 is a ISO 13399 cermet indexable insert, grade IC520N, TiCN coated. Suited for stainless steel, steel.
Specifications
Ansi insert codeCCMT3-1
Ansi size code3-1
Chip breakerT
Chip breaker operationFinishing
Clearance codeC
Coating finishTiCN
Coating processPVD
Corner radius in1/64
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance; Hardened Materials (H) - High Wear Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1732
Included angle80
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.3819
Insert materialCermet
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code3-1
Insert styleCCMT
Insert thickness in5/32
Iso codeISO 13399
Iso insert codeCCMT09T304
Iso size code09T304
Length range0.3000 - 0.4000
Manufacturer gradeIC520N
Maximum depth of cut0.0984
Primary workpiece materialStainless Steel; Steel
RakePositive
Relief angle7
Side clearancePositive
StandardsISO 13399
Tolerance codeM
