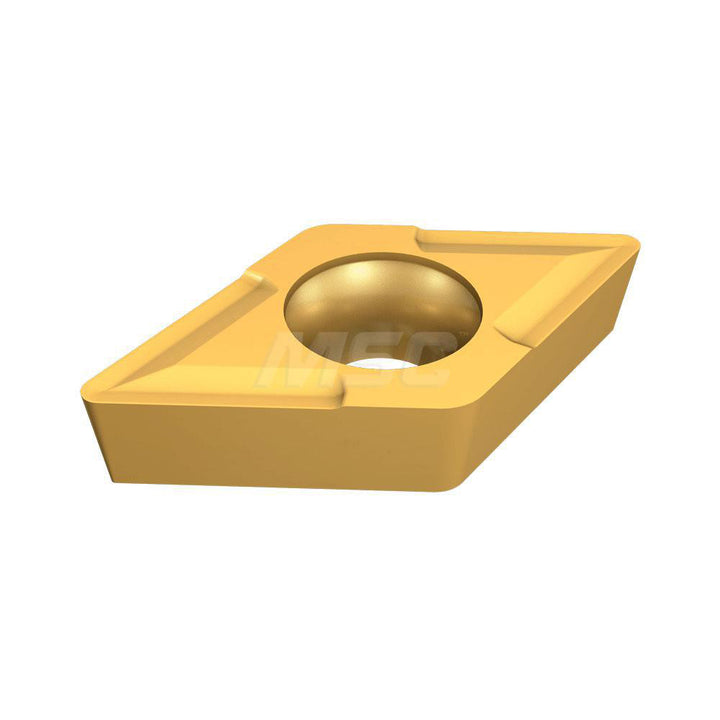

ISO 13399 Cermet Insert, Grade IC520N, TiCN - Iscar 5503777
MFR# 5503777ISO/ANSI# ISO 13399Series Isoturn
$13.65List $17.20
Save 20%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeIC520N
MaterialCermet
CoatingTiCN
Description
The Iscar 5503777 is a ISO 13399 cermet indexable insert, grade IC520N, TiCN coated. Suited for stainless steel, steel.
Specifications
Chip breakerT
Clearance codeC
Coating finishTiCN
Coating processPVD
Corner radius in1/64
Hole diameter0.1102
Included angle55.0
Inscribed circle in1/4
Insert holding methodScrew
Insert length0.3031
Insert materialCermet
Insert shapeDiamond
Insert size code2-1
Insert styleDCMT
Insert thickness in3/32
Iso codeISO 13399
Length range0.3000 - 0.4000
Manufacturer gradeIC520N
Maximum depth of cut0.0787
Primary workpiece materialStainless Steel; Steel
Relief angle7
StandardsISO 13399
Tolerance codeM
