Iscar

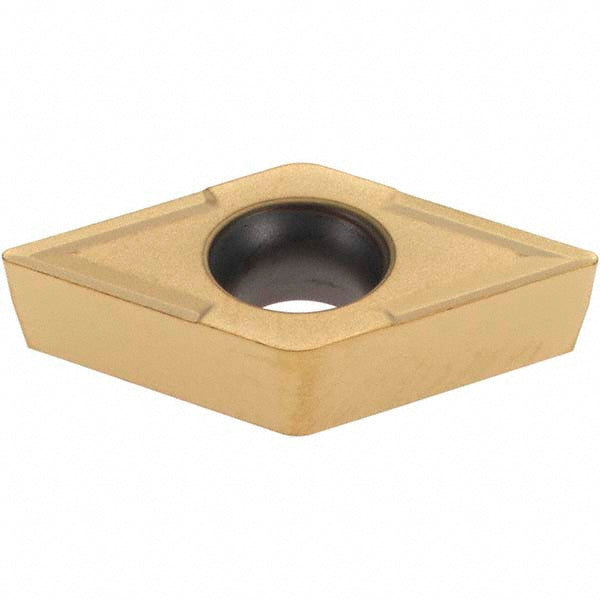

ISO 13399 Cermet Insert, Grade IC520N, TiCN - Iscar 5503779
MFR# 5503779ISO/ANSI# ISO 13399Series Isoturn
$18.48List $23.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeIC520N
MaterialCermet
CoatingTiCN
Description
The Iscar 5503779 is a ISO 13399 cermet indexable insert, grade IC520N, TiCN coated. Suited for stainless steel, steel.
Specifications
Chip breakerT
Clearance codeC
Coating finishTiCN
Coating processPVD
Corner radius in1/64
Hole diameter0.1732
Included angle55.0
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.4567
Insert materialCermet
Insert shapeDiamond
Insert size code3-1
Insert styleDCMT
Insert thickness in5/32
Iso codeISO 13399
Length range0.4000 - 0.5000
Manufacturer gradeIC520N
Maximum depth of cut0.0787
Primary workpiece materialStainless Steel; Steel
Relief angle7
StandardsISO 13399
Tolerance codeM
