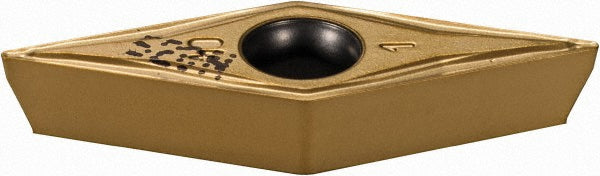

ISO 13399 Cermet Insert, Grade IC520N, TiCN/TiN - Iscar 5503781
MFR# 5503781ISO/ANSI# ISO 13399Series Isoturn
$23.79List $30.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeIC520N
MaterialCermet
CoatingTiCN/TiN
Description
The Iscar 5503781 is a ISO 13399 cermet indexable insert, grade IC520N, TiCN/TiN coated. Suited for stainless steel, steel.
Specifications
Chip breaker14
Clearance codeC
Coating finishTiCN/TiN
Coating processPVD
Corner radius in1/64
Hole diameter0.1732
Included angle35.0
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.6535
Insert materialCermet
Insert shapeDiamond
Insert size code331
Insert styleVCMT
Insert thickness in3/16
Iso codeISO 13399
Length range0.6500 - 0.7000
Manufacturer gradeIC520N
Material gradeC6; C7
Maximum depth of cut0.1970
Primary workpiece materialStainless Steel; Steel
RakePositive
Relief angle7
StandardsISO 13399
Tolerance codeM
