Iscar

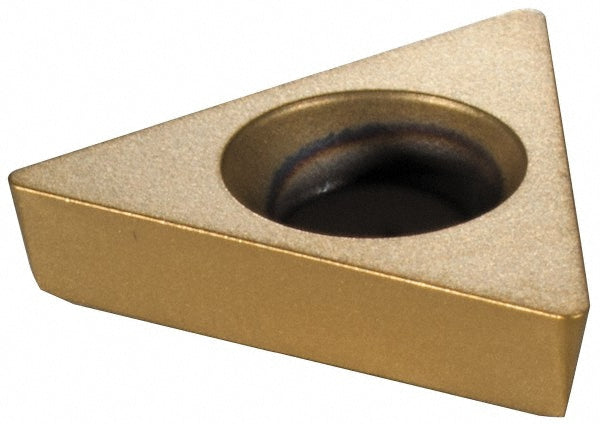

ISO 13399 Solid Carbide Insert, Grade IC570, TiCN - Iscar 5503783
MFR# 5503783ISO/ANSI# ISO 13399Series Isoturn
$17.31List $22.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
GradeIC570
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5503783 is a ISO 13399 solid carbide indexable insert, grade IC570, TiCN coated. Suited for m, p.
Specifications
Chip breakerB
Clearance codeP
Coating finishTiCN
Coating processPVD
Corner radius in1/64
Hole diameter0.1180
Included angle60.0
Inscribed circle in1/4
Insert holding methodScrew
Insert length0.4330
Insert materialSolid Carbide
Insert shapeTriangle
Insert size code2-1
Insert styleTPGB
Insert thickness in3/32
Iso codeISO 13399
Length range0.4000 - 0.5000
Manufacturer gradeIC570
Maximum depth of cut0.1180
Primary workpiece materialM; P
RakePositive
Relief angle11
StandardsISO 13399
Stocking categoryD
Tolerance codeG
