Iscar

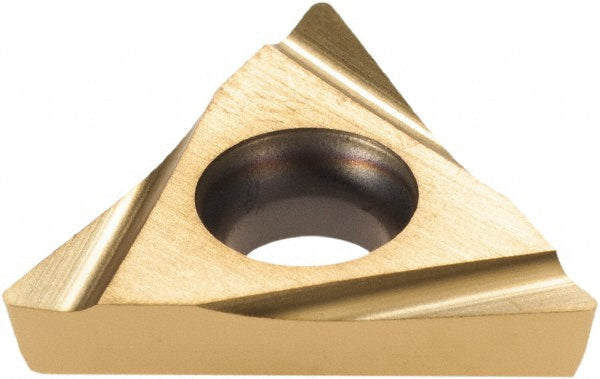

ISO 13399 Solid Carbide Insert, Grade IC570, TiCN - Iscar 5503790
MFR# 5503790ISO/ANSI# ISO 13399Series Isoturn
$31.03List $39.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeIC570
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5503790 is a ISO 13399 solid carbide indexable insert, grade IC570, TiCN coated. Suited for stainless steel, steel.
Specifications
Chip breakerL
Clearance codeP
Coating finishTiCN
Coating processPVD
Corner radius in1/64
Cutting directionLeft Hand
Hole diameter0.1693
Included angle60.0
Inscribed circle in3/8
Insert handLeft Hand
Insert holding methodScrew
Insert length0.6496
Insert materialSolid Carbide
Insert shapeTriangle
Insert size code321
Insert styleTPGH
Insert thickness in1/8
Iso codeISO 13399
Length range0.6000 - 0.6500
Manufacturer gradeIC570
Maximum depth of cut0.1575
Primary workpiece materialStainless Steel; Steel
Relief angle11
StandardsISO 13399
Tolerance codeG
