Iscar

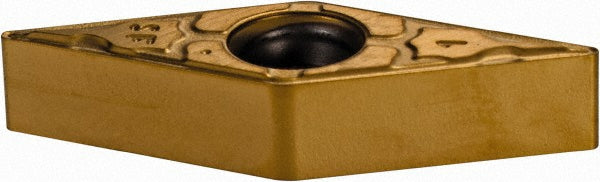

ISO 13399 Carbide Insert, Grade IC570, TiCN - Iscar 5503793
MFR# 5503793ISO/ANSI# VNMG12T304Series Isoturn
$15.91List $20.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC9/32
ShapeV - Diamond (Rhombic) 35-Deg
GradeIC570
MaterialCarbide
CoatingTiCN
Description
The Iscar 5503793 is a ISO 13399 carbide indexable insert, grade IC570, TiCN coated. Suited for stainless steel, steel.
Specifications
Ansi insert codeVNMG2.5-1
Ansi size code2.5-1
Chip breakerSF
Chip breaker operationFinishing
Clearance codeN
Coating finishTiCN
Coating processPVD
Corner radius in1/64
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance; Hardened Materials (H) - High Wear Resistance to Moderate Wear-Resistance and Toughness
Included angle35
Inscribed circle in9/32
Insert holding methodClamp; Pin
Insert length0.4882
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code2.5
Insert styleVNMG
Insert thickness in5/32
Iso codeISO 13399
Iso insert codeVNMG12T304
Iso size code12T304
Length range0.4000 - 0.5000
Manufacturer gradeIC570
Maximum depth of cut0.1181
Primary workpiece materialStainless Steel; Steel
Relief angle0
Side clearanceNegative
StandardsISO 13399
Tolerance codeM
