Iscar

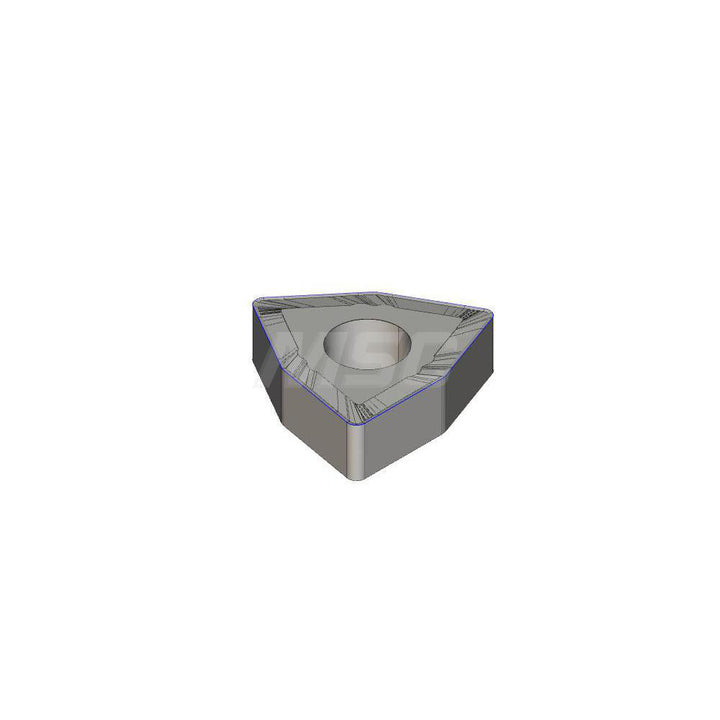

ISO 13399 Solid Carbide Insert, Grade IC20 - Iscar 5503798
MFR# 5503798ISO/ANSI# ISO 13399Series Isoturn
$13.02List $16.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
GradeIC20
MaterialSolid Carbide
Description
The Iscar 5503798 is a ISO 13399 solid carbide indexable insert, grade IC20. Suited for universal.
Specifications
Chip breakerTF
Clearance codeN
Coating processUncoated
Corner radius in1/32
Hole diameter0.2030
Included angle80.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.3425
Insert materialSolid Carbide
Insert shapeTrigon
Insert size code432
Insert styleWNMG
Insert thickness in3/16
Iso codeISO 13399
Length range0.3000 - 0.4000
Manufacturer gradeIC20
Material gradeC2; C3
Maximum depth of cut0.1570
Primary workpiece materialUniversal
RakePositive
Relief angle0
StandardsISO 13399
Tolerance codeM
